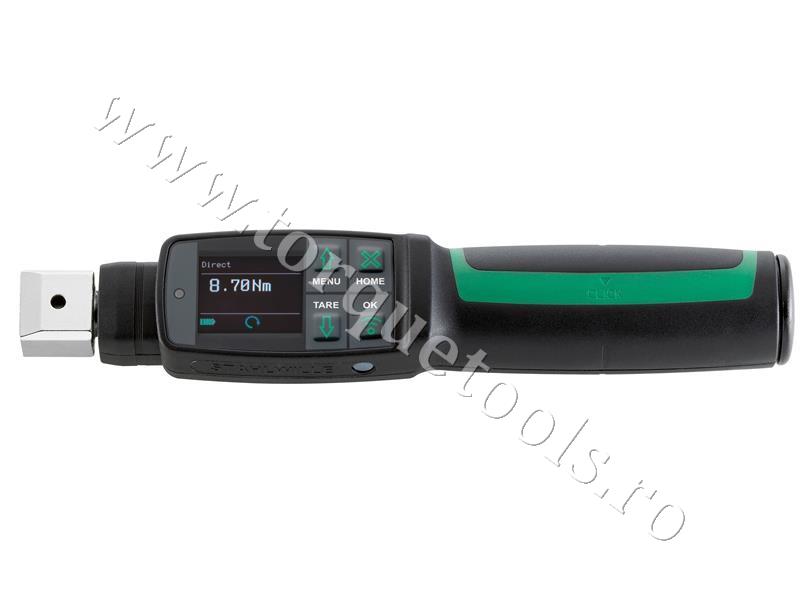

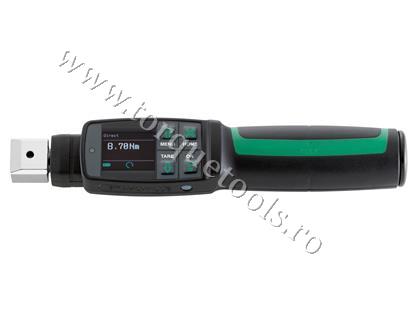

Stahlwille 96500902 - Cheie dinamometrica digitala 2-20 Nm

Pret recomandat:
6008,99 RON TVA Inclus

In stoc producator
Cere termen de livrare
Nume:
Telefon:
Email:
Mesaj:
Scrieti codul
din imaginea
alaturata:
Inchide X

Cod: 96500902

Prod: Stahlwille

Garantie:   12 Luni
Greutate:   380g
Clasa:   Profesionale

Detalii produs Inapoi

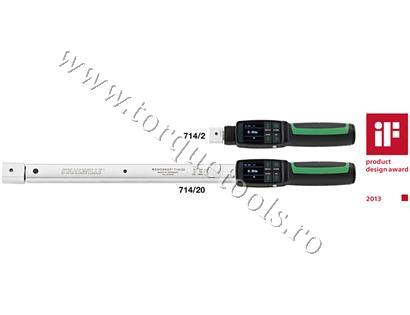

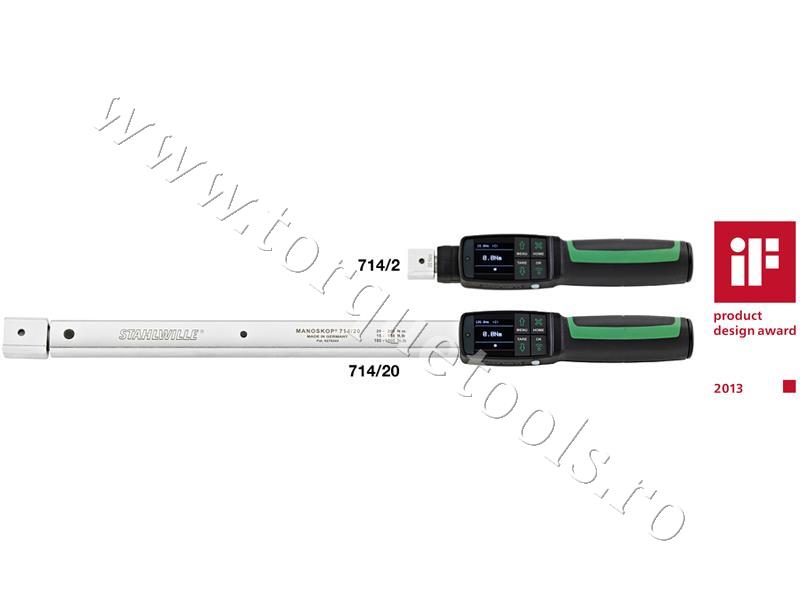

714 - Basic wrenches with tool carrier for insert tools

MANOSKOP® 714 - indicating and cut-out
Electromechanical torque and angle-controlled wrench


- 4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)

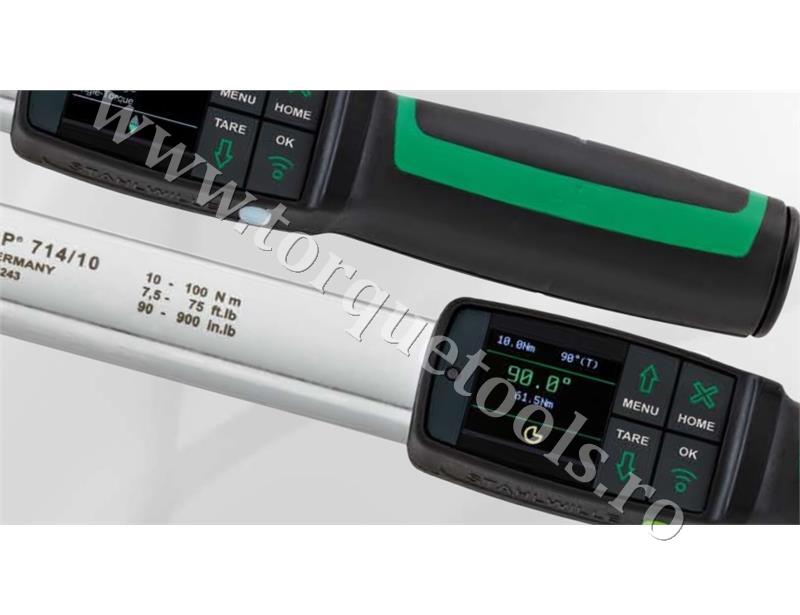

- high-definition colour display with additional side-mounted indicator lamps
- freely configurable menu structure
- optionally: Li-ion battery No 7195-2 and charger No 7160
- 3 function modes: cut-out, peak (indicating mode with peak value) and track (indicating mode with current value)
- Micro USB 2.0 interface
- bayonet connection for battery compartment
- QuickRelease safety lock change system for insert tools
- angle-controlled measurement without a reference arm
- as many as 200 joints can be programmed in up to 25 preset sequences.
- different tolerance limits can be set for each joint
- acoustic and visual assessment of the joint
- rapid, accurate setting via keypad
- the automatic keypad lock prevents inadvertent changes
- overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
- automatic notification of the next calibration date, either by the number of joints or the time interval
- fully automated calibrating and adjusting using the perfectControl calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
- units of measure: N m, ft.lb, in.lb.
- tightening torque is automatically corrected if a deviating extension is entered
- immediately reusable after release
- clockwise and anticlockwise tightening - it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode
- tactile and acoustic trigger signal.
- torque and angle are simultaneously visible
- all readings are independent of the point of application of force (with sizes 1, 2 and 4)
- safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)
- 2 certificates (torque, angle)
- in sturdy plastic case (size 40 in steel case)
- design patent, patent
- supplied with Sensomaster software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
- display resolution, angle 0.1°
- display deviation value, angle ±1%, ±1 digit
- display resolution, torque ≤ 40 N m: 0.01 N m; > 40 N m: 0.1 N m
- display deviation value, angle ±2%, ±1 digit

Date tehnice

Date tehnice:
- Domeniul de actiune:
        - 2 - 20 Nm
        - 1.5 - 15 ft.lb
        - 18 - 180 in.lb
- Prindere capete 9x12mm

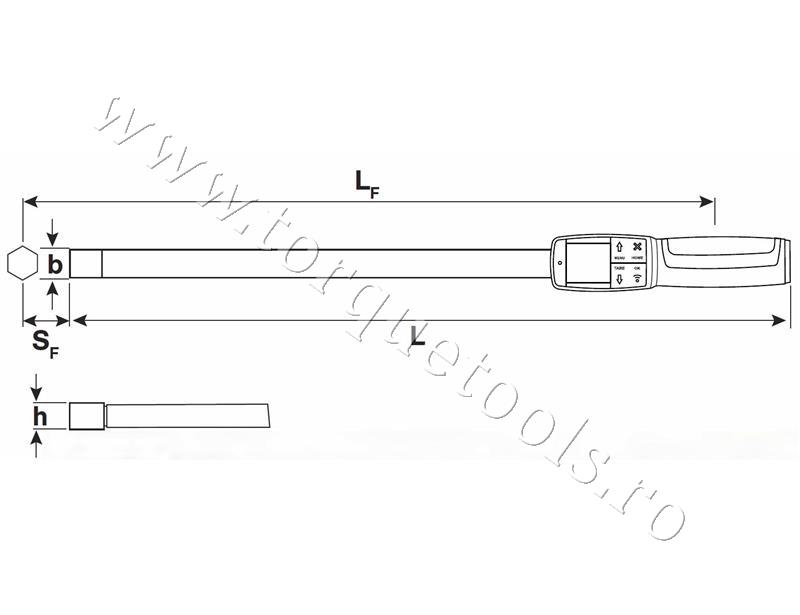

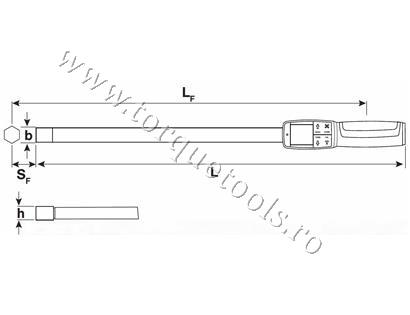

- Dimensiuni:
    - b = 28mm
    - h = 23mm
    - L = 226mm
    - Lf=188mm
    - Sf=17,5mm
- Greutate: 380g

Ambalare

Cutie solida din plastic

Pachetul contine

Pachetul contine:
- Cheie dinamometrica: 1 buc
- Software management date SENSOMASTER
- Cablu USB
- 4 Baterii AAA
- Certificat de calibrare pentru strangere emis de producator
- Certificat de calibrare pentru unghi, emis de producator
- Certificat de conformitate
- Certificat de garantie

Informatii utile

Putem asigura urmatoarele servicii:
- Punere in functiune si instruire utilizare cheie dinamometrica
- Instalare/instruire software management date (Sensomaster)
- Update software management date
- Update firmware cheie dinamometrica
- Certificate calibrare emise de catre un birou agreeat B.R.M.L.
- Recertificari
- Recalibrari
- Service

Aceste servicii sunt taxabile si nu sunt incluse in pretul cheii dinamometrice.
Pentru oferta personalizata va rugam sa ne contactati.

Accesorii

Putem oferi diverse tipuri de accesorii pentru diverse aplicatii.
