Sisteme complete pentru calibrarea si reglarea cheilor dinamometrice
In stoc producator
Cod:
96521094
Greutate:
230 Kg
|
|
Detalii produs Inapoi

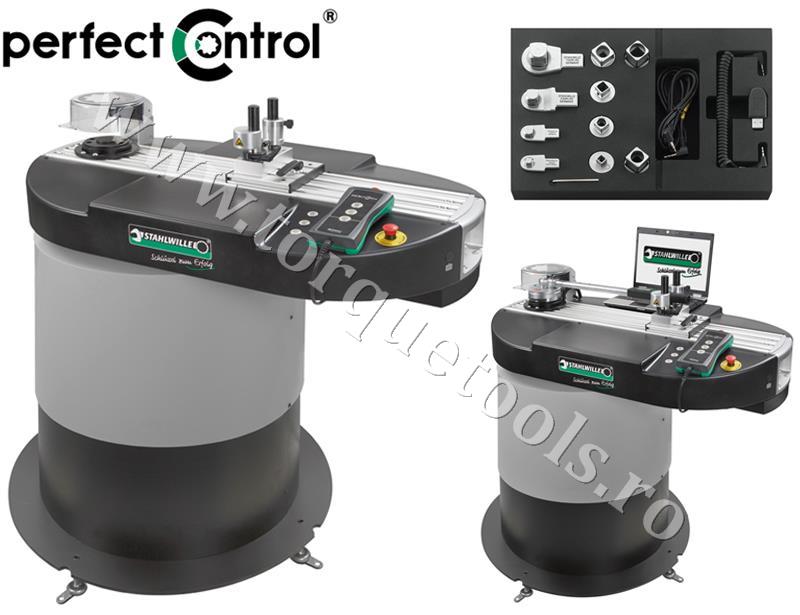

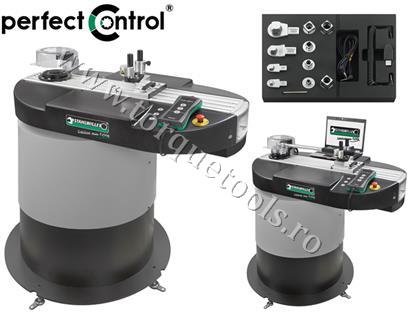

7794-3 - Automated calibrating and adjusting unit from 1 to 400 N m
Fully automatically calibrates electronic torque and angle-controlled wrenches made by STAHLWILLE
Design patent, other patents applied for.
Model is the same as perfectControl No 7794-2, except it is additionally suited to calibrating angle-controlled wrenches.
Optimum adaptation to working height with motorised height adjustment.
4 calibrating square drive insert tools No 734K (sizes 4, 5, 20, 40), 6
square drive adaptors (No 409M, No 7787, No 7788, No 7789, No 7789-4, No
7789-5), 1 USB adaptor No 7751, software Torkmaster, 1 jack cable No
7751, 1 spiral cable No 7752, 1 low-temperature cable connector, hexagon
key wrench No 10760CV size 2 mm are included.
Supplied without torque wrench and transducer.
Pentru oferta personalizata va rugam sa ne contactati.
|
Date tehnice
Cod
|
ISO
|
Pentru traductoarele
|
LF
|
Profil
|
b
|
h
|
L
|
Kg
|
| 96521094 |
1-400Nm
|
7727 (Gr. 1-100)
|
825mm
|
180
|
640
|
884-1134
|
1060
|
230
|
Informatii utile
Putem furniza diverse configuratii de testere, standuri analogice sau digitale pentru verificarea sau calibrarea surubelnitelor si cheilor dinamometrice. Recomandate pentru utilarea laboratoarelor de verificari metrologice, laboratoarelor de certificari sau pentru diverse aplicatii din mediul profesional.
Ofertele vor fi personalizate in functie de necesitatile de exploatare.
Asiguram recertificare si recalibrare periodica.
Pentru informatii suplimentare va rugam sa ne contactati.
